Effective Case Forming and Bullet Assembly

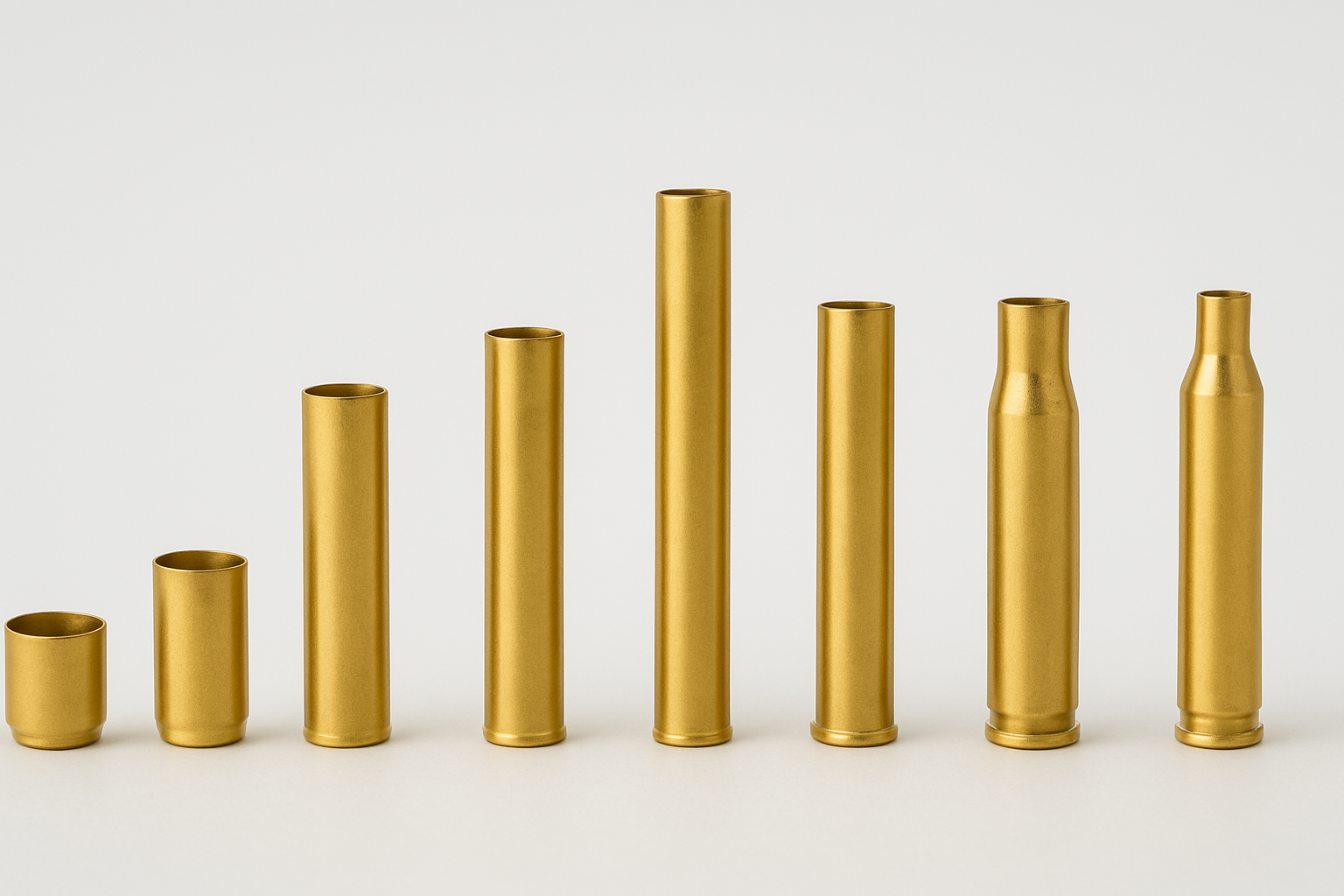

The powerhouse of your production line. Step by step, Bliss’ range of transfer presses form to your unique needs. Shaping precise bullet components through a series of forming stations, Bliss’ superior tooling and customizability adds significant accuracy and refinement, ensuring your final product meets the highest standards of quality and consistency.
Inspection & Packaging
Cupping
Drawing
Washing
Annealing
Case Forming & Bullet Assembly
Head & Mouth Turning
Loading
Inspection & Packaging
Compare Machines
One machine, multiple operations. Compounding your efficiency.
Transforming raw material into reliable, high-performance components. Through high efficiency, unmatched consistency and seamless integration into your production solution, Bliss is on the cutting-edge of industry innovation. Click the tabs below to compare options.
Highlights
- Case forming through 20 stations.
- Tailored for 9mm, 5.56mm, 7.62mm, FMJs and solid projectiles.
- Available in a long-stroke variant (3020LS) to support an expanded variety of small caliber cases and projectiles.
Highlights
- Bliss' latest addition to its innovated portfolio.
- Seamless multi-stage operations, offering exceptional precision paired with reliability.
- 18 stations, supporting small caliber cases and medium (14.5mm) caliber projectiles.
Highlights
- Largest capacity of transfer press offerings.
- For progressive ammunition case forming from 12.7mm to 20mm.
- 16 stations, balancing efficiency with precision for larger calibers.
Technical Highlights

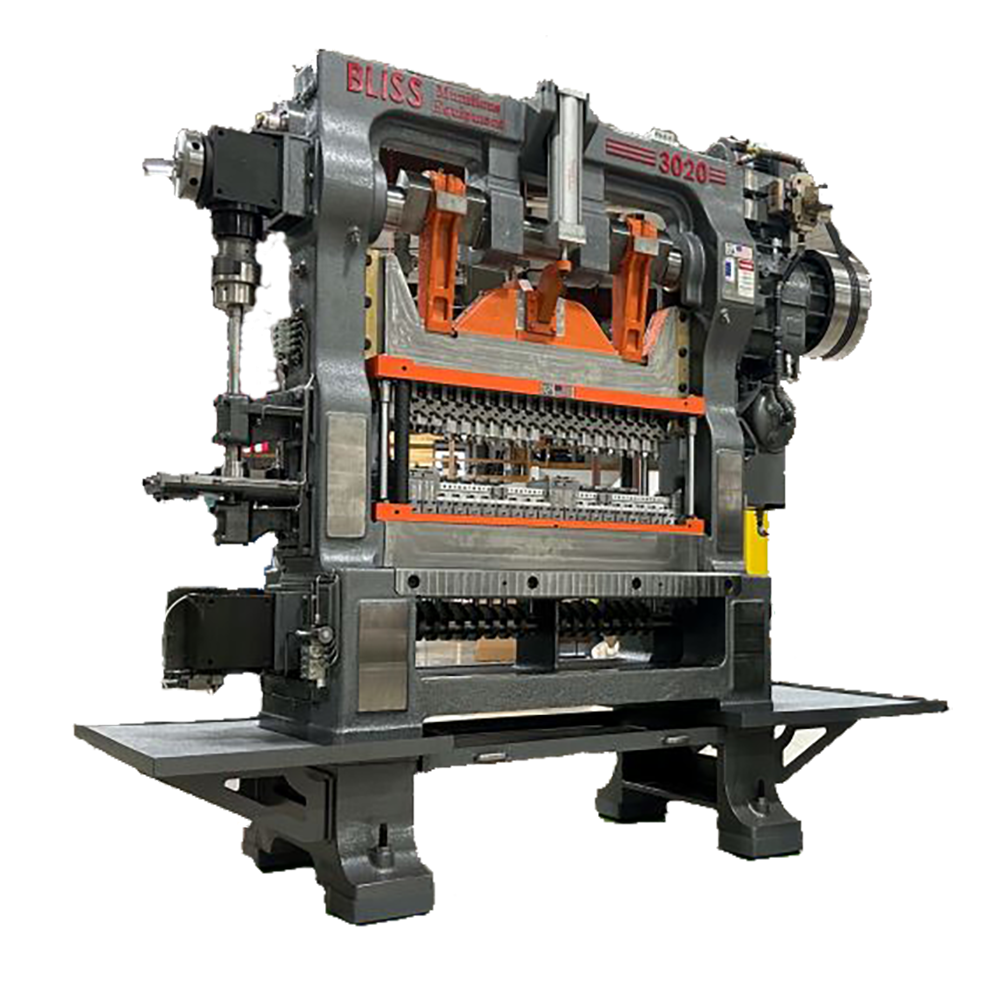

3020 Transfer Press
20 Stations
Designed for forming and bullet assembly of 9mm to 7.62mm, FMJs and small caliber solid projectiles.
Production Capability
Small calibers
Stroke
5.0” (127mm)
Speed
75-110 SPM, caliber dependent
Capacity
35 tons
3020LS Transfer Press
20 Stations with Positive Upper Knockout
Long-stroke variant of the 3020 featuring a higher capacity rating and a 1.5-inch (38.1mm) stroke increase, with the addition of upper knockout.
Production Capability
Wider range of small calibers, case and projectile
Stroke
6.5” (165.1mm)
Speed
75-110 SPM, caliber dependent
Capacity
50 tons
5018 Transfer Press
18 Stations with Positive Upper Knockout
Designed for seamless multi-stage operations, the 5018 Transfer Press offers state-of-the-art precision for all small caliber cases - when tooled to assemble bullets, the Bliss 5018 Transfer Press’ capability expands up to 14.5mm.
Production Capability
All small caliber cases, and medium caliber projectiles
Stroke
8.0” (203.2mm)
Speed
60-100 SPM, caliber dependent
Capacity
70 tons
260 Transfer Press
16 Stations with Positive Upper Knockout
Equipped with servo feeds, upper positive knockout, the 260 ensures high output, consistent part quality, and efficient integration into modern ammunition lines requiring reliability with larger production needs.
Production Capability
12.7mm bullet assembly and up to 20mm cases
Stroke
14.0” (355.6mm)
Speed
60-100 SPM, caliber dependent
Capacity
150 tons
Maximize opportunities.
Streamline for success.
Consistency
Ensures uniform dimensions and quality across high volumes.
Efficiency
Performs many forming steps in one continuous process, reducing handling and cycle times.
Integration
Feeds directly into upstream and downstream processes, keeping production flow continuous.
