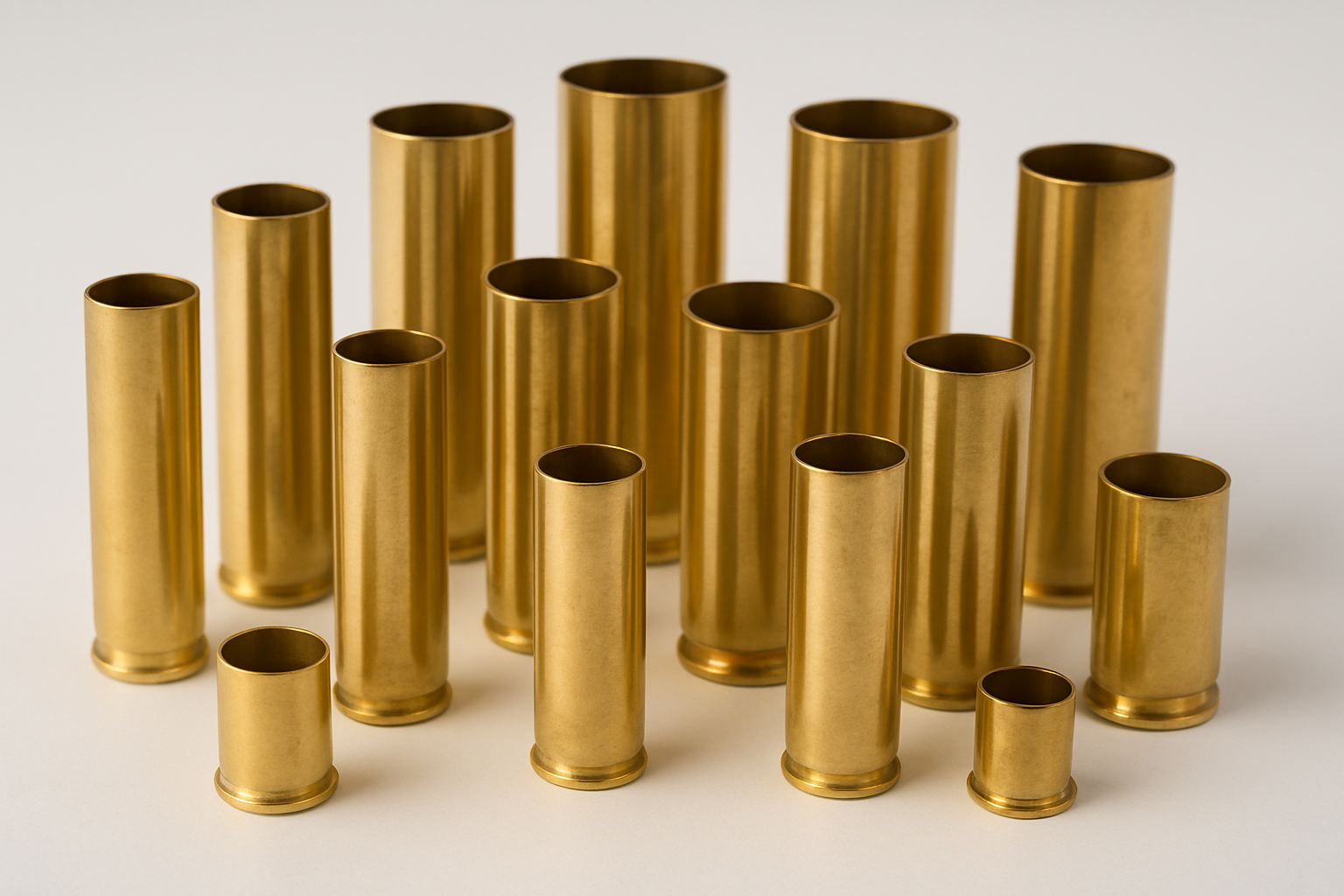

Drawing Cups, The Start of The Forming Process
The Bliss 304 and 305 Draw Presses both take raw metal cups and progressively form precisely, a necessity for reliable ammunition. Our high-quality draw presses ensure consistent dimensions, tight tolerances, and smooth material flow, while maintaining competitive speed - directly contributing to better safety, accuracy, and downstream efficiency.
Inspection & Packaging
Cupping
Drawing
Washing
Annealing
Case Forming & Bullet Assembly
Head & Mouth Turning
Loading
Inspection & Packaging
Compare Machines
Shaping future steps. Reliability from the start.
The strength of your production line begins with the precision of your draw presses. Bliss’ draw presses construct upon on the foundation Bliss’ cupping presses lay. Click the tabs below to compare options.
Highlights
- Designed for reliable deep draw operations while maintaining tight dimensional tolerances.
- Two parts per stroke, allowing it to double throughput relative to presses that make one per stroke.
- Runs at 60-100 strokes per minute (SPM), enabling very high production rates.
Highlights
- Engineered to handle medium calibers (notably 12.7mm, 14.5mm, and 20mm).
- Strong production volume, operating at approximately 50-90 strokes per minute.
- Built for repeatability, the 305 ensures tight dimensional control and uniformity.
Technical Highlights

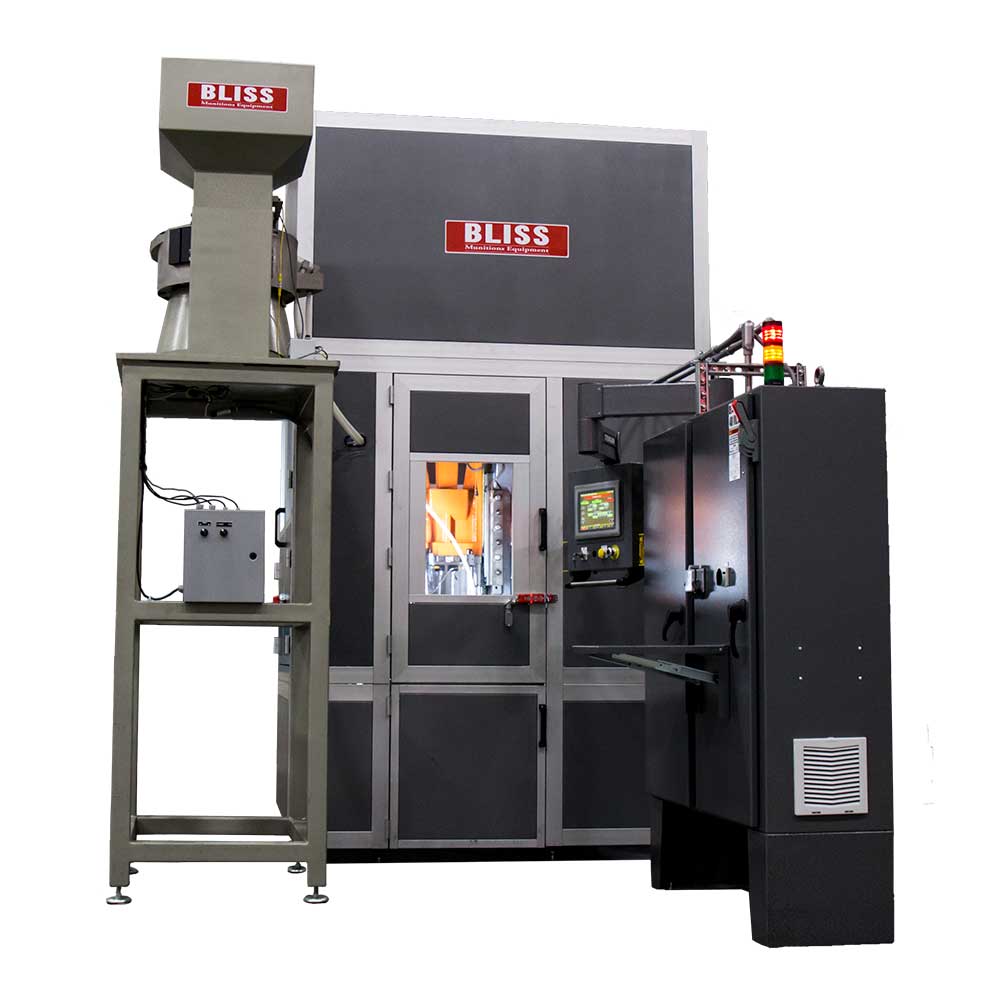

304 Draw Press
Flexibility for Various Small Cases
The 304 Draw Press supports deep draw operations essential for forming uniform, high-quality cartridge cases in large-scale manufacturing environments.
Caliber Range
All small caliber cases
Stroke
8.0" (203.2mm)
Speed
60-100 SPM, caliber dependent
Capacity
60 tons

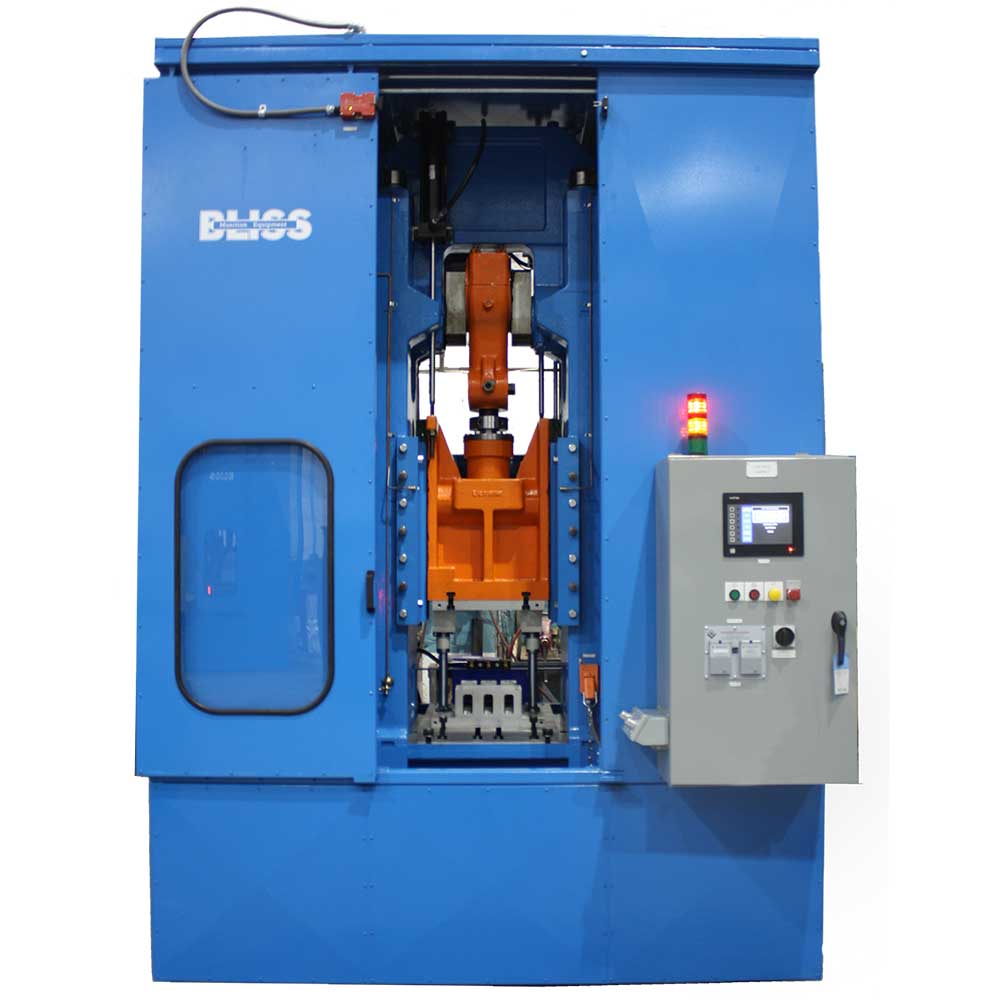

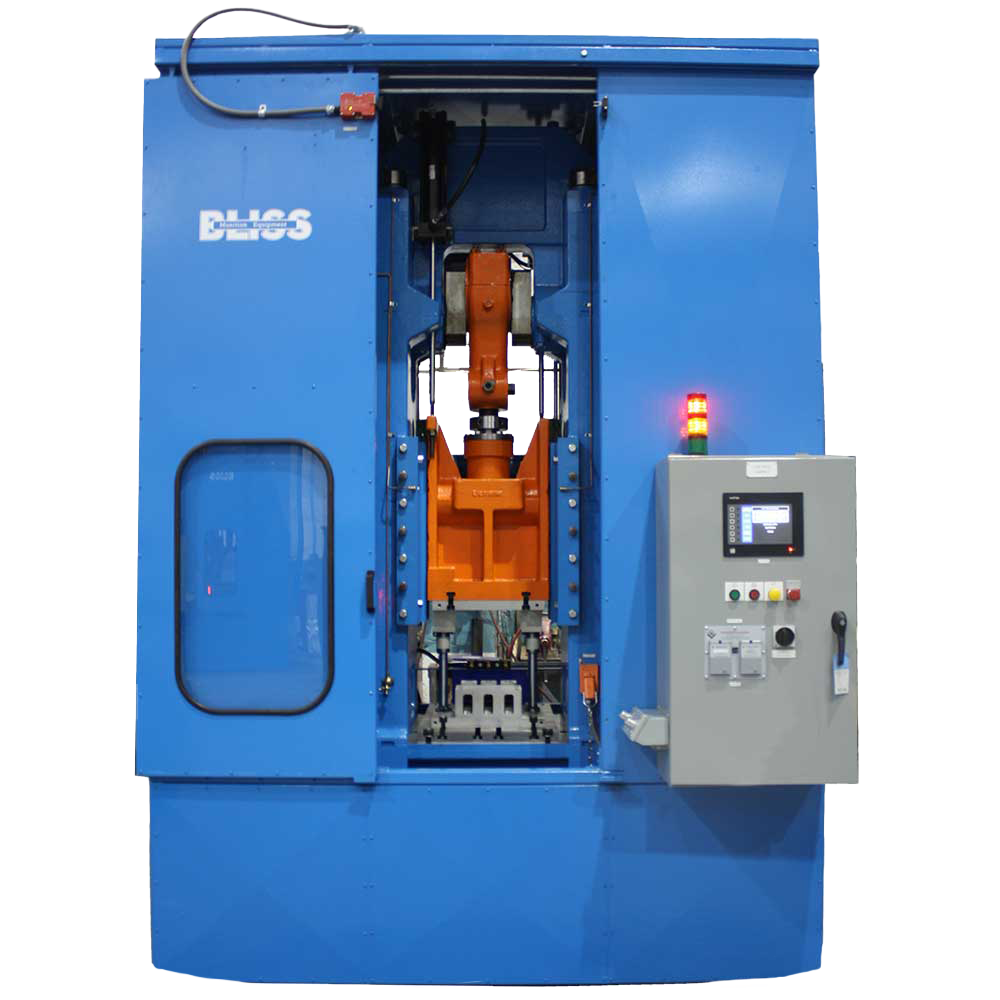

305 Draw Press
Designed for Medium Caliber Production
Heavy-duty, coil-fed press designed for small to medium caliber cup production. This higher-capacity cupping press supports seamless integration into modern ammunition manufacturing lines — delivering consistent, high-volume output for defense applications.
Caliber Range
Up to 20mm
Stroke
12.0” (304.8mm)
Speed
50-90 SPM, caliber dependent
Capacity
90 tons
Continual success.
Crucial to move forward.
Consistency
Delivers uniform draws contributing to consistent case sizing, crucial for accurate production.
Tight Tolerances
Forming seamless, single parts with extreme attention to detail – eliminating the need for external processes.
Smooth Flow
Speed control and high-quality tooling prevent tearing and wrinkling – resulting in a much lower reject rate.
